Castle Pocket Routers
Official UK Distributor of Castle Pocket Routers for Over 30 Years

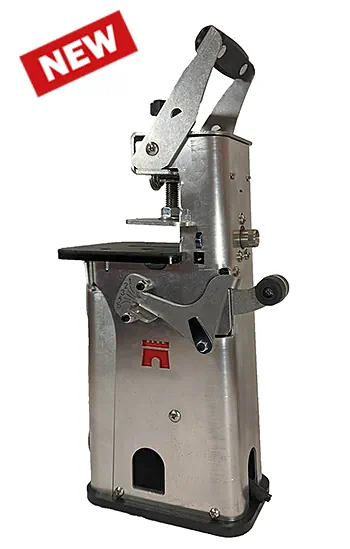

110 Pocket Cutter Machine
Create Castle low-angle, professional pockets in seconds with the Castle 110 Pocket Cutter. The 110 cuts our exclusive low-angle, 3 degree pocket, makes fast, strong, and attractive joints for cabinets, bookcases, face frames, and other woodworking projects while minimizing joint misalignment common with a drilled pocket.
Since the screw’s pilot hole is drilled from the opposite side, there is no accumulation of waste or tear out which allows joined pieces to fit as tightly as possible.
Features and Benefits:
• 3 Degree Pocket minimizes joint shift
• Stronger joints and faster assembly
• Portable and adjustable
• Super clean pockets with no tear out
• Factory assembled and adjusted. No additional setup required.
• Designed and assembled in the USA from US and global components.
• Castle Pockets have smooth clean finishes and join seams flush, minimizing shift.
• Easy to adjust clamp height
• Easy to align and cut perfect pockets every time

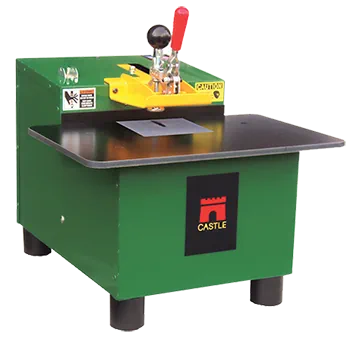

TSM-12 - Benchtop Pocket Cutter
Now with Bosch motor
The Portable Pocket Cutter! Originally released as the TSM-10, licensed to Porter Cable as the 552 and back in production better than ever at Castle as the TSM-12! The only routed pocket in the industry. The superior low screw angle minimizes joint shift.
The TSM-12 cuts the 6° Castle Pocket with no tear out in less than 2 seconds. Designed for job-site use, small shops, or the weekend warrior. The TSM-12 delivers quality with every Castle pocket it cuts.
Technical Specifications:
• Router: Bosch 2.25HP #1617EVS Router Motor
• Router Bit: Premium 3/8″ Solid Carbide, Rough Mill
• Drill: Bosch Colt 1.0HP #PR20EVS
• Drill Bit: 9/64” Brad and Spur Premium TiN Coated Bit
• Power Req: 110V, 15 amps
• Shipping Weight: 65 lbs
• Footprint: 13.5W x 20L x 20H

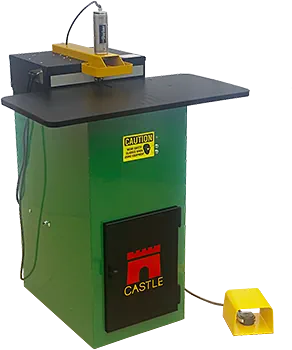

TSM-22 Pocket Cutter
The TSM-22 clamps the stock, routs a 6 degree, low-angle pocket, and drills a pilot hole – all with a tap of the foot pedal – in a cycle time of just 1.5 to 2 seconds. Known for creating Castle’s pioneering, 6 degree, low-angle pocket, the TSM-20 series has a well-earned reputation for unsurpassed durability, ease of operation, and low maintenance.
The TSM-22 is the latest model in Castle’s vaunted TSM-20 series, the most widely used, and best-selling series of pedal-operated pocket cutting machines ever made. It is a clear favorite among professionals in cabinet making, furniture making, woodworking, and more.
Creating strong, stable joints is fast and easy with the TSM-22. Very little training is required and with a work deck that smoothly lifts, maintenance is hassle-free. The TSM-22 is PLC controlled for better performance and easier troubleshooting, uses standard 110V electric, and only requires minimal set-up upon delivery.
Use the TSM-22 with composites, panel, hard or soft wood.
Technical Specifications:
• Router: Bosch 2.25HP #1617EVS Router Motor
• Router Bit: Premium 3/8″ Solid Carbide, Rough Mill
• Drill: Bosch Colt 1.0HP #PR20EVS
• Drill Bit: 9/64” Brad and Spur Premium TiN Coated Bit
• Power Req: 110 V, 15 amps
• Air Req: 1 cfm at 85 psi minimum
• Basic footprint: 24″ depth x 16″ width
• Working height: 35″
• Worktop usable area: 16″ depth x 32″ width
• Machine height: 36″

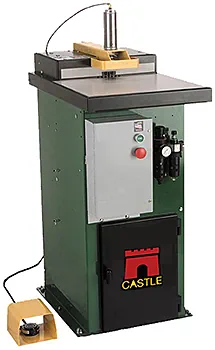

TSM-35 Heavy Duty Pocket Cutter
TSM-30 series features heavy duty construction throughout, with easy, top-down access for quick tooling changes. Designed for continuous or multi-shift production in a broad variety of woodworking manufacturing environments, and PLC controlled for better performance and easier troubleshooting.
Powerful and extremely durable induction motors drive the pocket cutting spindle and all models use a high-torque, heavy-duty air motor – specifically designed for Castle – to drive the pilot bit. Both operations – pocket cutting and pilot hole drilling – are completed in a single cycle.
Adjustable indexing stops are built into the top for quick part transitions during high production shifts. A favourite among cabinet, furniture, mobile home, RV manufacturers and more, these premier woodworking shop tools can produce more than a quarter million pockets per month for years on end with minimal maintenance.
Technical Specifications:
Router: 1-1/2HP Baldor Router Motor
Router Bit: Premium 3/8″ Solid Carbide, Rough Mill
Drill: Sioux SDG10S25FCT Air Motor
Drill Bit: 9/64” Brad and Spur Premium TiN Coated Bit
Power Req: Three-phase 208v, 230v, Three phase 415v
Air Req: 85 psi minimum – External Regulator, Filter and Lubricator included
Basic footprint: 21″ depth x 19″ width
Working height: 36.5″
Worktop usable area: 16″ depth x 18.5 width
Machine height: 38

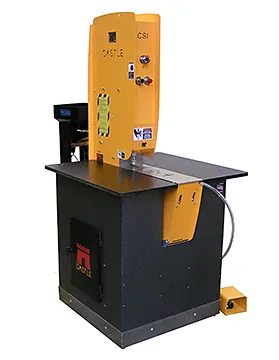

CSI-Next Pocket Cutter & Screw Inserter
Castle’s CSI-Next Pocket Cutter/Screw Inserter saves time, reduces waste, and eliminates non-value-added labor and screw-handling motion trauma for high-production cabinet joinery. By using patented Screw-in-Pocket (SIP) technology CSI-Next cuts Castle’s distinctive screw pocket, drills a low angle pilot hole AND inserts a flush, stackable screw in two seconds. CSI-Next provides faster production time by eliminating screw handling at assembly. Using the Castle CSI Pocket Cutter/Screw Inserter can cut your assembly time nearly in half!
Technical Specifications:
Electrical: Main – 220V or 460V / 3Ph / 20AMP / 60hZ, Aux – 120V supply for screw feeder
Air: 80 PSI with min. 3/8″ I.D. supply line
Dust Collection: 4″ duct
Basic footprint: 28″ x 28″
Working height: 36″
Work top usable area: 32 ” depth x 34″ width
Machine height: 71″
Tooling for Castle Pocket routers
Distributed by ata Engigeering
Discover all the tools and router bits compatible with your Castle Pocket Router.
9/64" Drill Bit Brad & Spur Point
With 1/4″ Shank
£14.30
9/64" Premium Drill Bit Brad & Spur Point
With 1/4″ Shank
£22.00
3/16” Drill Bit Split Point
With 1/4″ Shank
£16.72
9/64" Premium Drill Split Point
With 1/4″ Shank
£18.95
3/8" DIA CARBIDE TIPPED ROUTER CUTTER
With 3/8” shank
£23.37
3/8” Solid Carbide 3-Flute Router Bit
B00338
£87.00
3/8" Cobalt Steel 4-Flute Roughing Router Bit
B00438
£75.75
3/8" Solid Carbide 3-Flute Reverse Helix Router Bit
B01338
£85.50
